01
2-cylinder
4 models

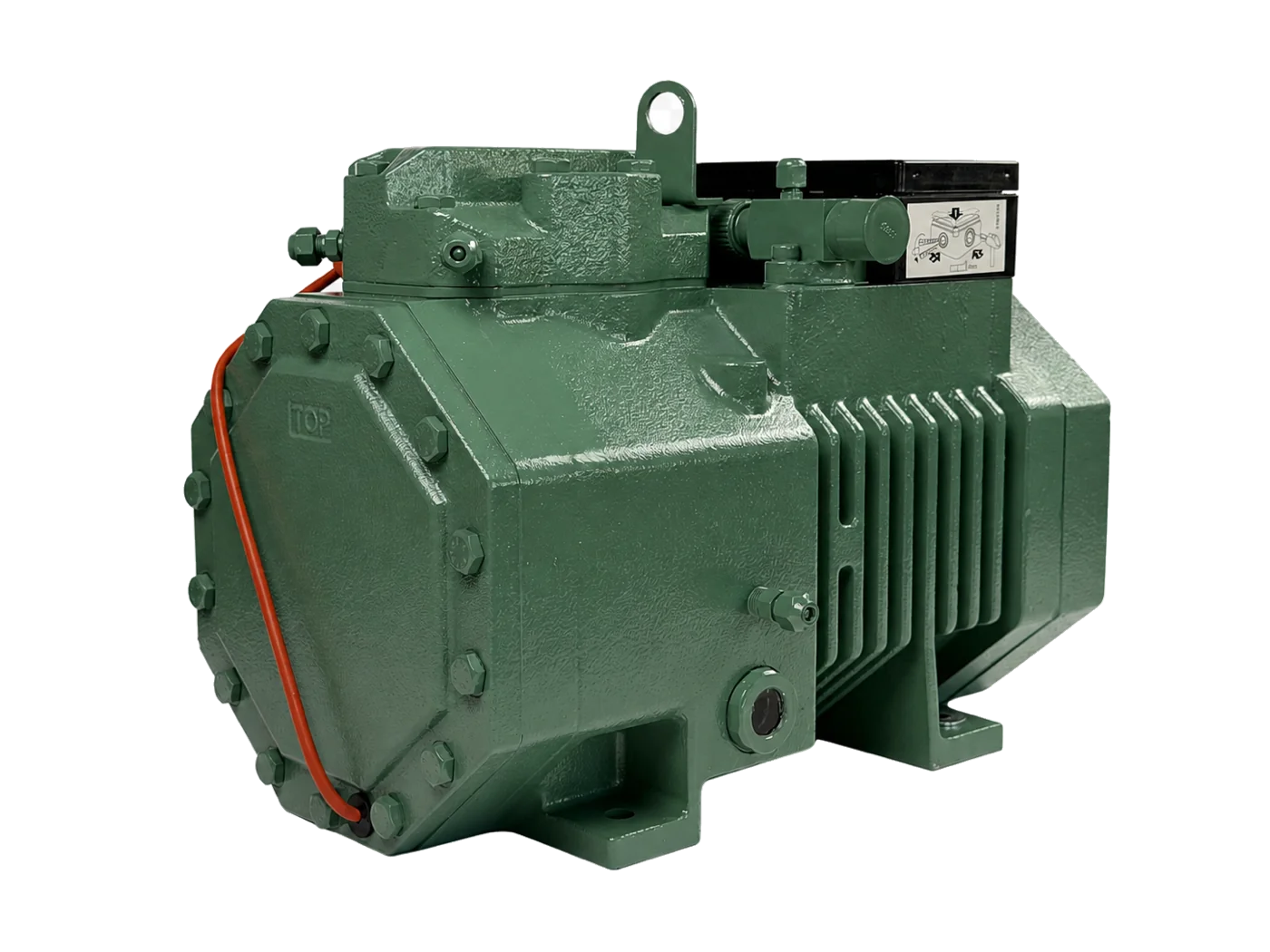

2DC / 2CC
Compact semi-hermetic range with 13.4–16.2 m³/h displacement at 50Hz.
View technical modelsREPLACEMENT COMPRESSORS
BITZER-compatible by model. Ready for your market.
PRODUCT & TECHNICAL SUPPORT
Independent aftermarket semi-hermetic reciprocating compressors supplied by BITZER model reference, helping distributors identify compatible replacements quickly and accurately.
Talk to our export teamCOMPRESSOR FAMILIES
Select a model reference to view its complete multi-angle photo gallery and technical data.
02
4-cylinder
2 models

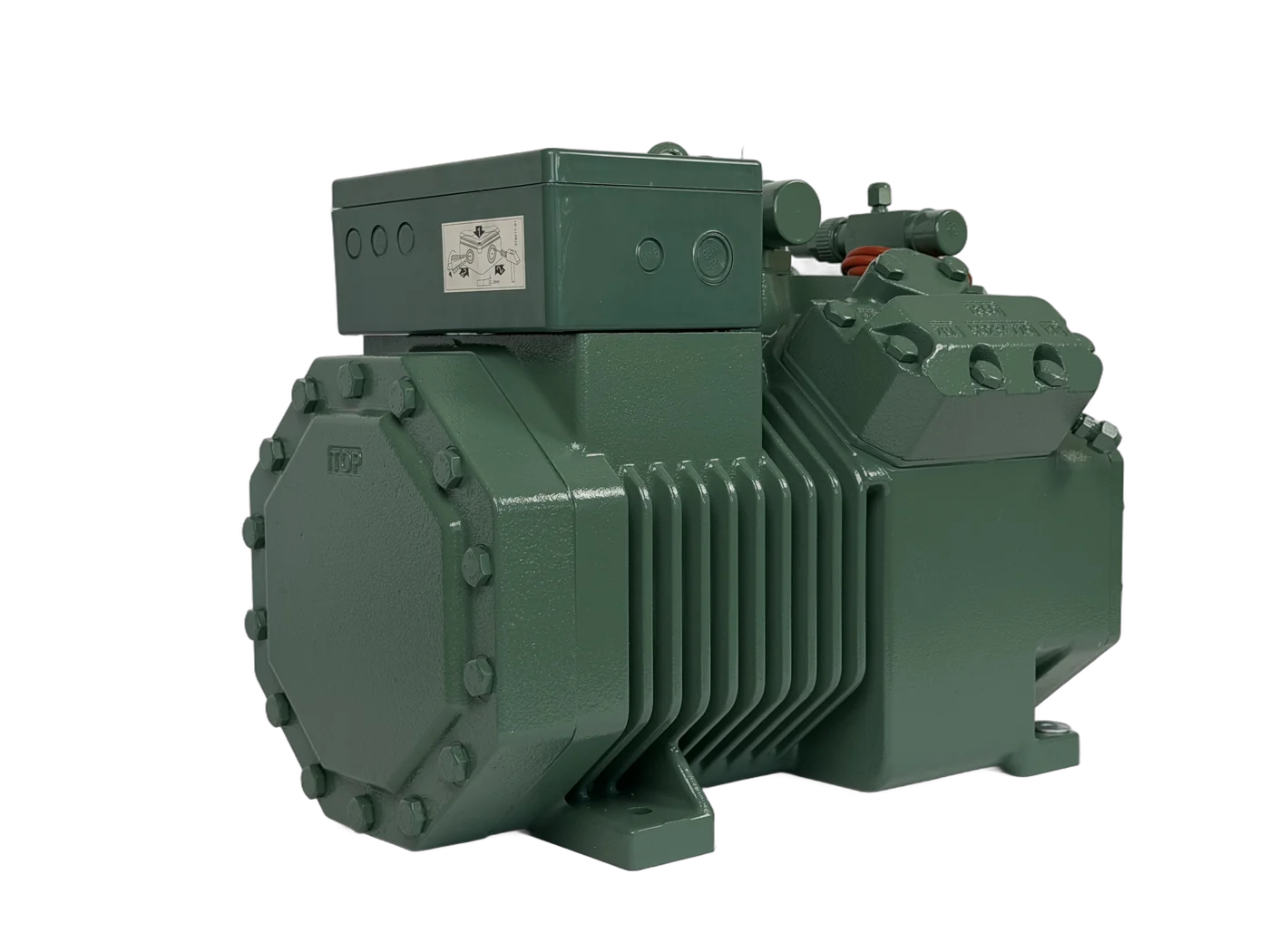

4FC Series
Compact four-cylinder models with 18.1 m³/h displacement at 50Hz.
View technical models03
4-cylinder
6 models
4EC / 4DC / 4CC
Core four-cylinder range spanning 22.7–32.5 m³/h displacement at 50Hz.
View technical models04
4-cylinder
8 models
ECOLINE 4-cylinder
Extended-capacity series from 34.7 to 56.2 m³/h displacement at 50Hz.
View technical models05
4-cylinder
4 models

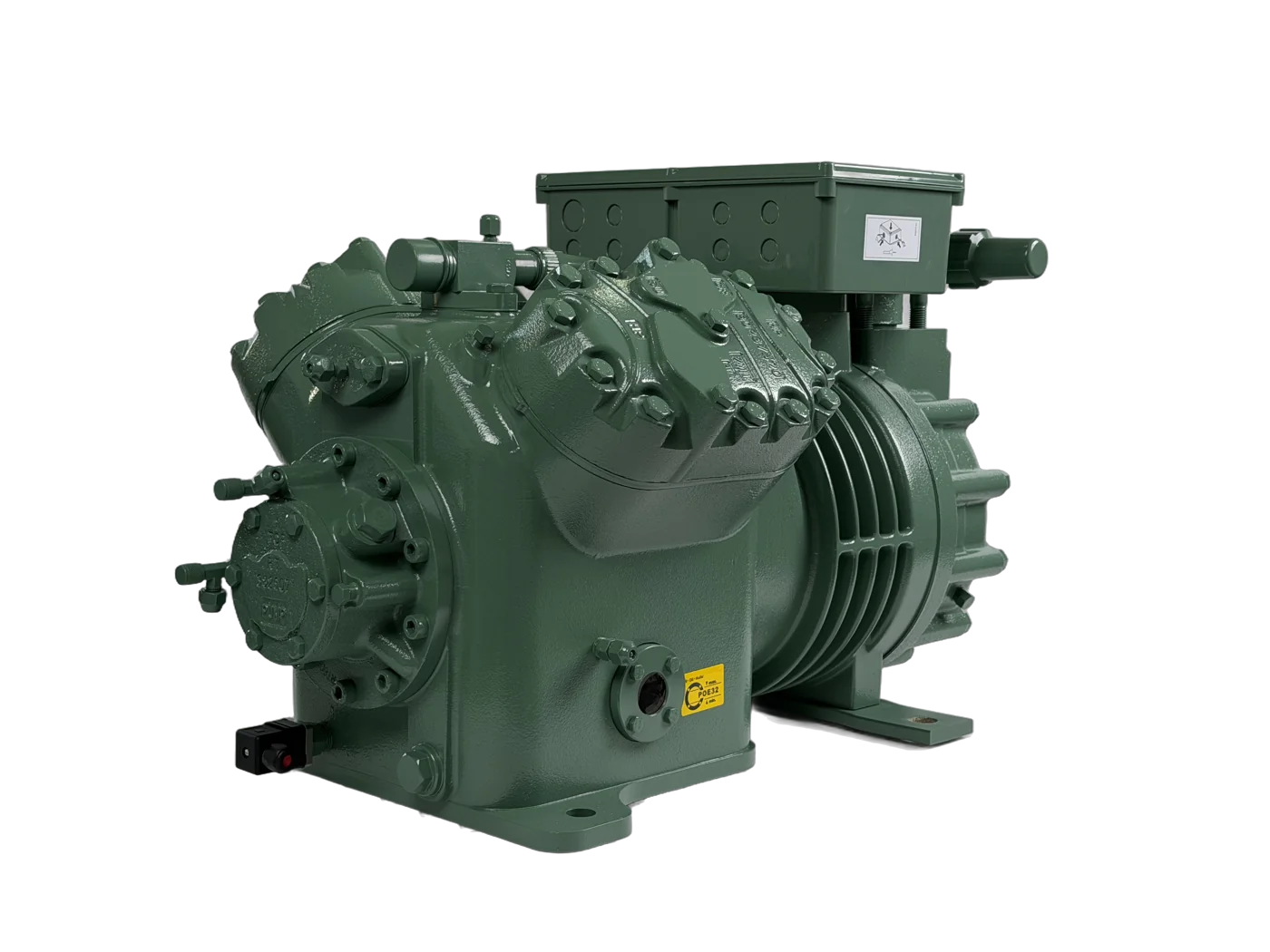

4H / 4G
Heavy-duty oil-pump models for higher-capacity refrigeration applications.
View technical models06
6-cylinder
6 models

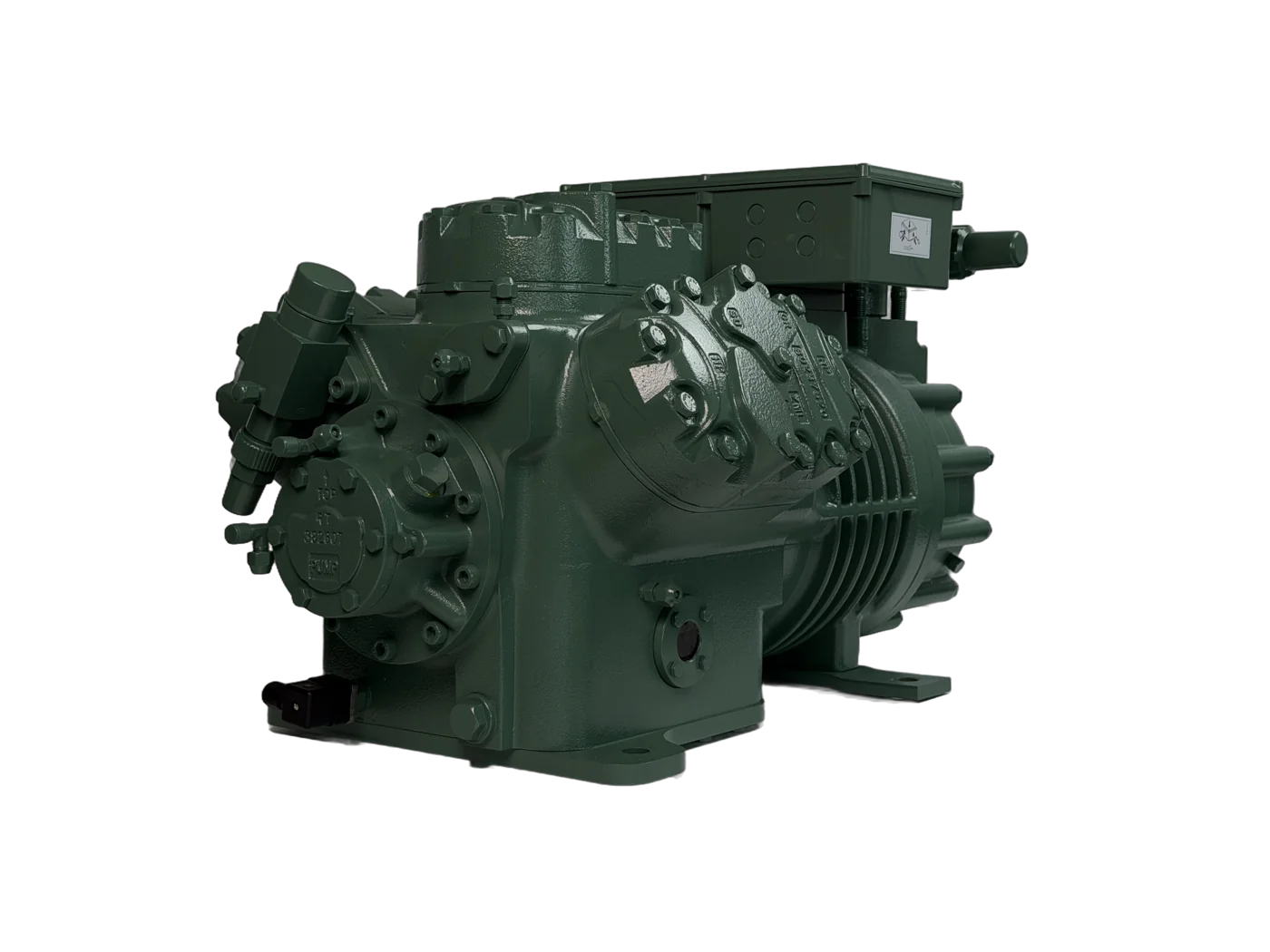

6H / 6G / 6F
Large six-cylinder range from 110.5 to 151.6 m³/h displacement at 50Hz.
View technical models07
6-cylinder
3 models

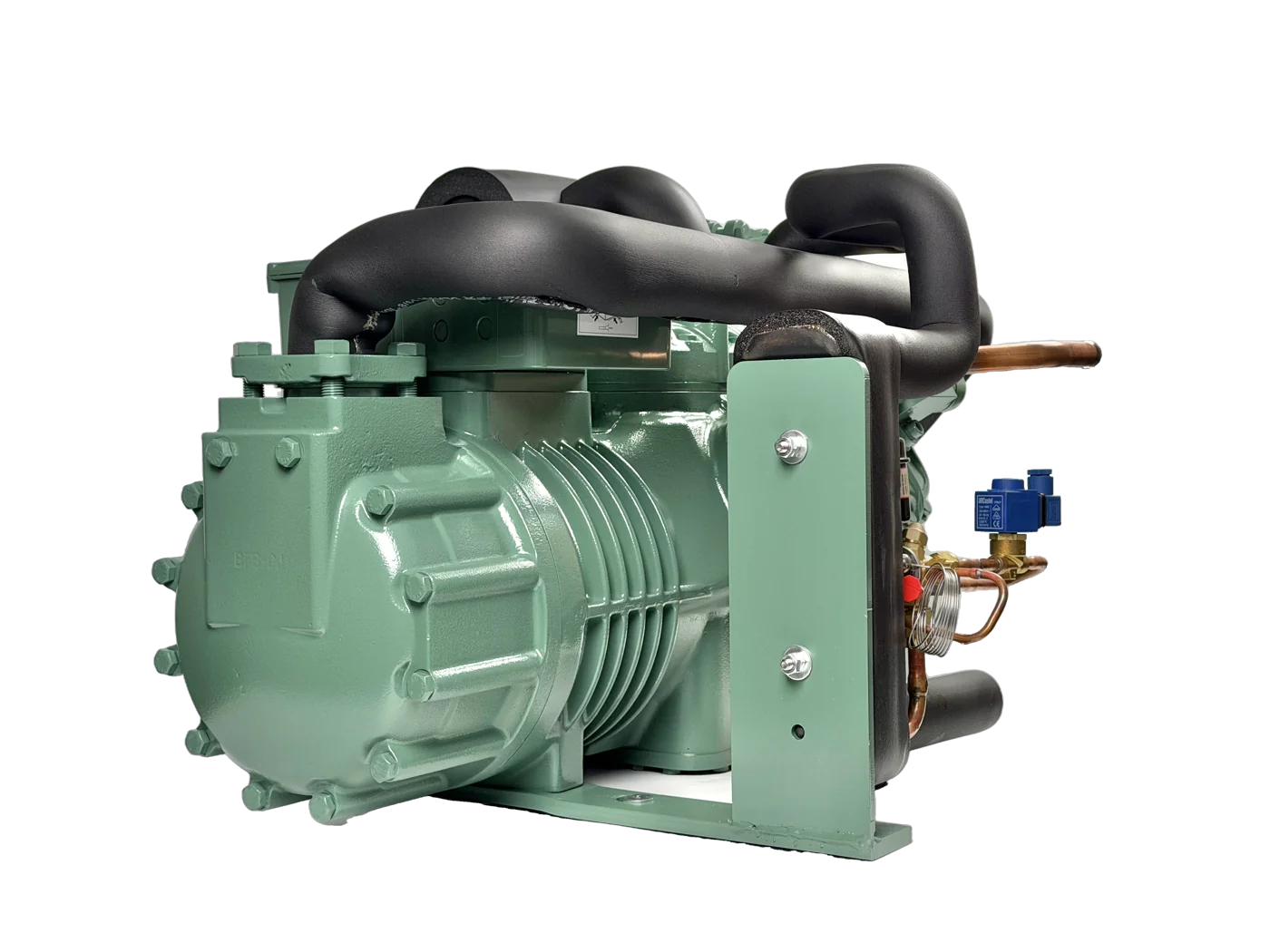

S6 Series
S6 heavy-duty models with oil-pump lubrication and 20–30 HP ratings.
View technical modelsTECHNICAL MODEL DIRECTORY
Compressor model directory
Filter by family or search the exact model reference. Technical values are taken from the approved product parameter workbook.
2–50HP range
13.4–151.6Displacement m³/h at 50Hz
| Model | HP / kW | Displacement 50Hz m³/h | Cylinders × Bore × Stroke mm | Dimensions L×W×H mm | Weight kg | Technical details |
|---|---|---|---|---|---|---|
| 2DC-2.2 | 2 / 1.5 | 13.4 | 2 × Ø50 × 39.3 | 398 × 267 × 300 | 67.5 | |
| 2DC-3.2 | 3 / 2.2 | 13.4 | 2 × Ø50 × 39.3 | 398 × 267 × 300 | 70.5 | |
| 2CC-3.2 | 3 / 2.2 | 16.2 | 2 × Ø55 × 39.3 | 398 × 267 × 300 | 70 | |
| 2CC-4.2 | 4 / 3 | 16.2 | 2 × Ø55 × 39.3 | 398 × 267 × 300 | 70 | |
| 4FC-3.2 | 3 / 2.2 | 18.1 | 4 × Ø41 × 39.3 | 432 × 304 × 350 | 82 | |
| 4FC-5.2 | 5 / 3.7 | 18.1 | 4 × Ø41 × 39.3 | 432 × 304 × 350 | 86 | |
| 4EC-4.2 | 4 / 3 | 22.7 | 4 × Ø46 × 39.3 | 432 × 304 × 353 | 84 | |
| 4EC-6.2 | 6 / 4.4 | 22.7 | 4 × Ø46 × 39.3 | 432 × 304 × 353 | 86 | |
| 4DC-5.2 | 5 / 3.7 | 26.8 | 4 × Ø50 × 39.3 | 432 × 304 × 353 | 85.5 | |
| 4DC-7.2 | 7 / 5.1 | 26.8 | 4 × Ø50 × 39.3 | 458 × 304 × 353 | 88.5 | |
| 4CC-6.2 | 6 / 4.4 | 32.5 | 4 × Ø55 × 39.3 | 458 × 304 × 353 | 90.5 | |
| 4CC-9.2 | 9 / 6.6 | 32.5 | 4 × Ø55 × 39.3 | 458 × 304 × 353 | 90.5 | |
| 4VCS-6.2 | 6 / 4.4 | 34.7 | 4 × Ø55 × 39.3 | 634 × 306 × 385 | 129 | |
| 4VCS-10.2 | 10 / 7.5 | 34.7 | 4 × Ø55 × 39.3 | 634 × 306 × 385 | 139 | |
| 4TCS-8.2 | 8 / 5.5 | 41.3 | 4 × Ø60 × 42 | 634 × 306 × 385 | 134 | |
| 4TCS-12.2 | 12 / 8.8 | 41.3 | 4 × Ø60 × 42 | 634 × 306 × 385 | 141 | |
| 4PCS-10.2 | 10 / 7.5 | 48.5 | 4 × Ø65 × 42 | 634 × 306 × 385 | 139 | |
| 4PCS-15.2 | 15 / 10.5 | 48.5 | 4 × Ø65 × 42 | 657 × 306 × 385 | 147 | |
| 4NCS-12.2 | 12 / 8.8 | 56.2 | 4 × Ø70 × 42 | 634 × 306 × 385 | 141 | |
| 4NCS-20.2 | 20 / 15 | 56.2 | 4 × Ø70 × 42 | 657 × 306 × 385 | 150 | |
| 4H-15.2 | 15 / 10.5 | 73.7 | 4 × Ø70 × 55 | 693 × 417 × 453 | 183 | |
| 4H-25.2 | 25 / 18.5 | 73.7 | 4 × Ø70 × 55 | 741 × 417 × 453 | 203 | |
| 4G-20.2 | 20 / 15 | 84.6 | 4 × Ø75 × 55 | 741 × 417 × 453 | 192 | |
| 4G-30.2 | 30 / 22 | 84.6 | 4 × Ø75 × 55 | 741 × 417 × 453 | 206 | |
| 6H-25.2 | 25 / 18.5 | 110.5 | 6 × Ø70 × 55 | 765 × 452 × 445 | 224 | |
| 6H-35.2 | 35 / 25.5 | 110.5 | 6 × Ø70 × 55 | 795 × 452 × 445 | 235 | |
| 6G-30.2 | 30 / 22 | 126.8 | 6 × Ø75 × 55 | 765 × 452 × 445 | 228 | |
| 6G-40.2 | 40 / 30 | 126.8 | 6 × Ø75 × 55 | 795 × 452 × 445 | 238 | |
| 6F-40.2 | 40 / 30 | 151.6 | 6 × Ø82 × 55 | 795 × 452 × 445 | 239 | |
| 6F-50.2 | 50 / 37 | 151.6 | 6 × Ø82 × 55 | 795 × 452 × 445 | 241 | |
| S6H-20.2 | 20 / 15 | 110.5 | 6 × Ø70 / 70 × 55 | 741 × 417 × 453 | 220 | |
| S6G-25.2 | 25 / 18.5 | 126.8 | 6 × Ø75 / 75 × 55 | 741 × 417 × 453 | 233 | |
| S6F-30.2 | 30 / 22 | 151.6 | 6 × Ø82 / 82 × 55 | 741 × 417 × 453 | 234 |
Technical data is provided for preliminary model selection. Please confirm voltage, refrigerant, operating conditions and required configuration with our export team before ordering.
All third-party model names and references are used solely to identify compatible applications. Dongqi Refrigeration is an independent aftermarket supplier and is not an official or authorized Bitzer partner.
