4FC Series
4FC-3.2
BITZER-compatible semi-hermetic reciprocating compressor for the independent refrigeration aftermarket.

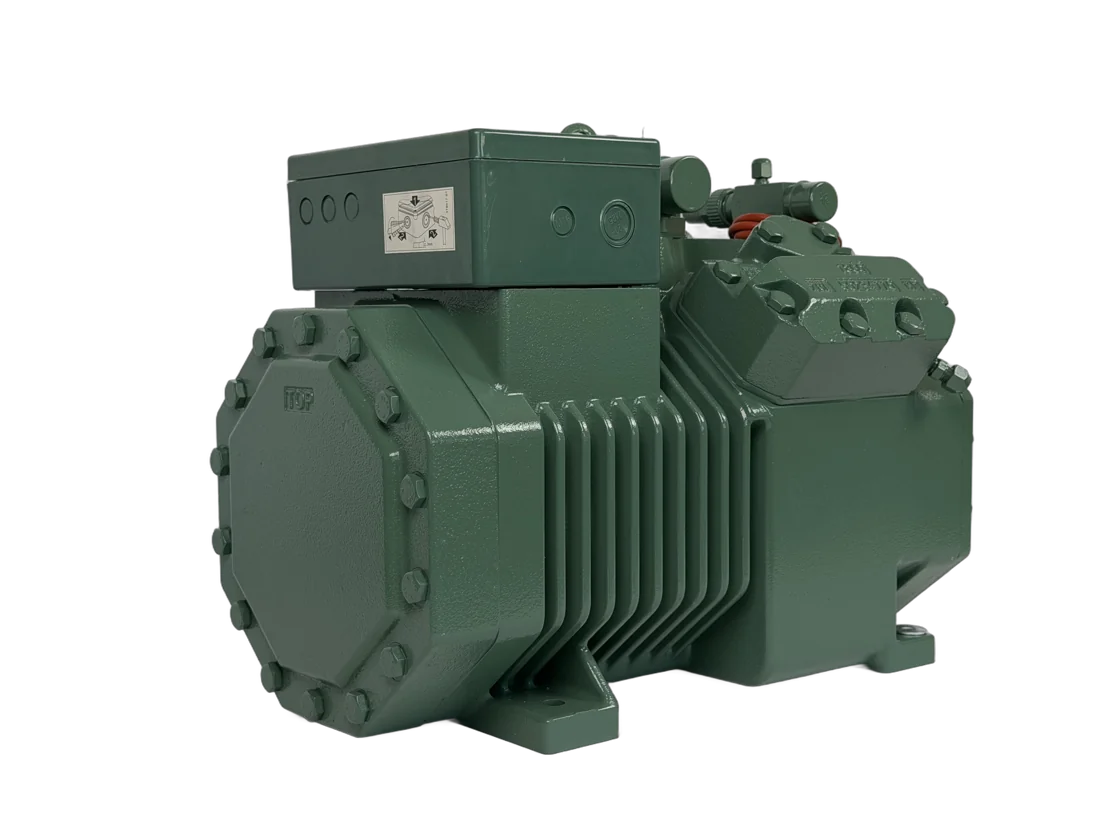

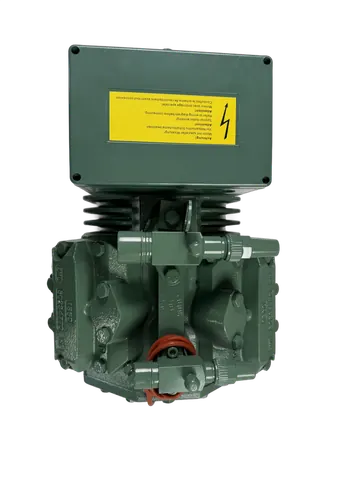

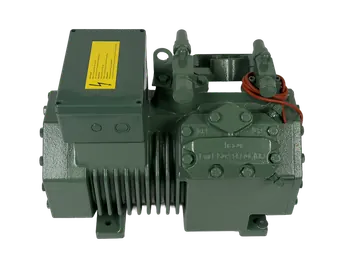

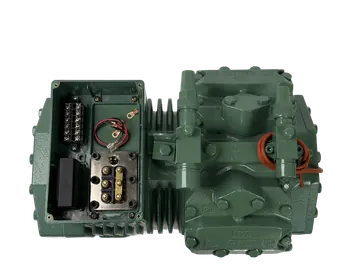

Inspect the compressor from every side.
These photographs show the shared exterior configuration for the 4FC Series appearance group. Confirm nameplate and ordered configuration with our export team.
4FC-3.2 specifications
Values support preliminary model matching. Final electrical and application details should be confirmed before ordering.
- Nominal power
- 3 HP / 2.2 kW
- Displacement at 50Hz
- 18.1 m³/h
- Cylinders × bore × stroke
- 4 × Ø41 × 39.3 mm
- Power supply
- 50Hz: 220–240V Δ / 380–420V Y · 60Hz: 265–290V Δ / 440–480V Y
- Max operating current
- 15.9 / 9.2 A
- Starting / locked rotor current
- 76.6 / 44.2 A
- Oil charge
- 2 L
- Oil supply
- Centrifugal
- Dimensions L×W×H
- 432 × 304 × 350 mm
- Mounting B×A
- 293 × 198 mm
- Crankcase heater
- 220V / 120 W
- Net weight
- 82 kg
Please provide voltage, frequency, refrigerant, operating conditions, quantity and destination so we can confirm the correct configuration.
BITZER and its model references are third-party trademarks used solely to identify compatible applications. Dongqi Refrigeration is an independent aftermarket supplier and is not an official or authorized BITZER partner.
