6H / 6G / 6F
6G-40.2
BITZER-compatible semi-hermetic reciprocating compressor for the independent refrigeration aftermarket.
Inspect the compressor from every side.

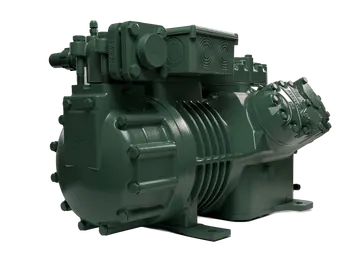

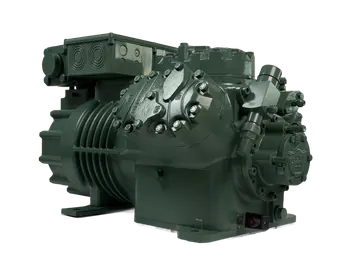

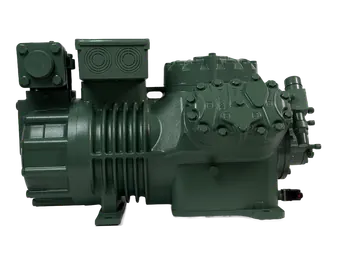

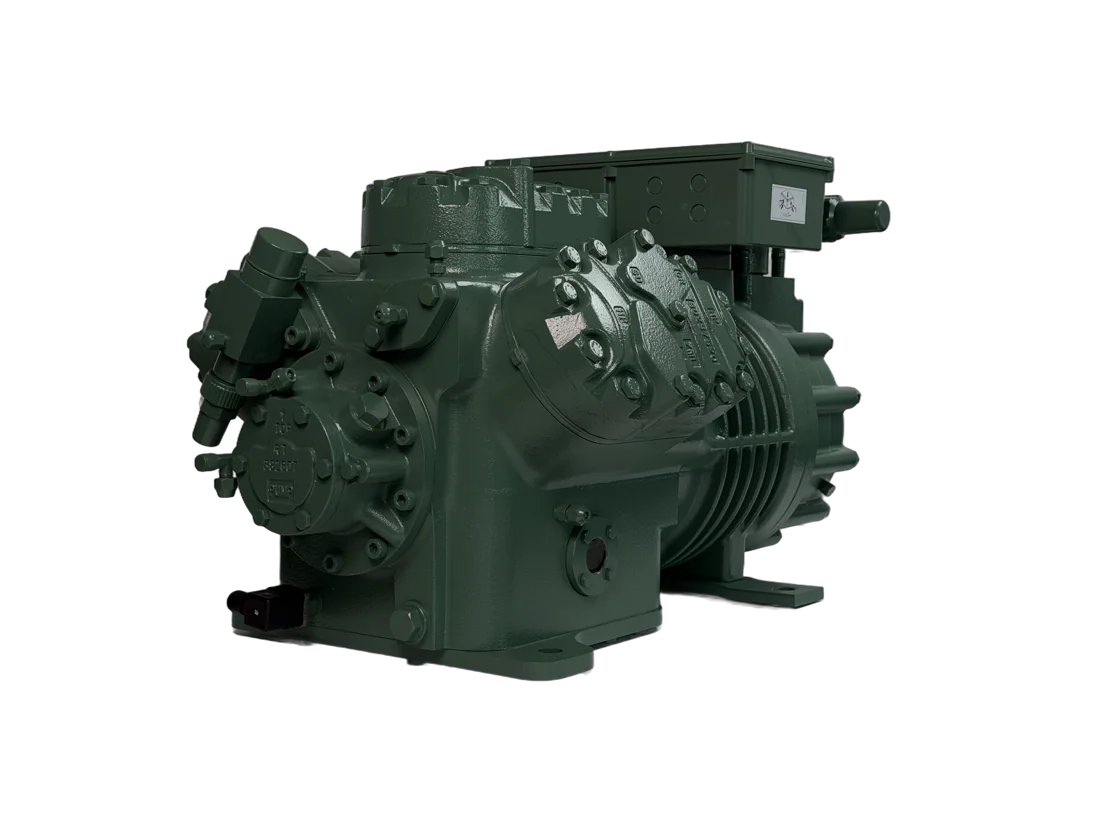

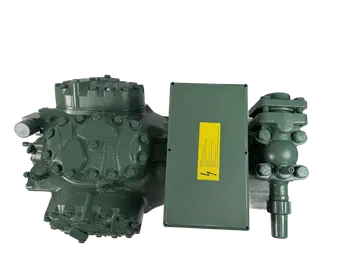

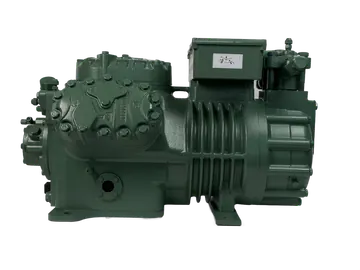

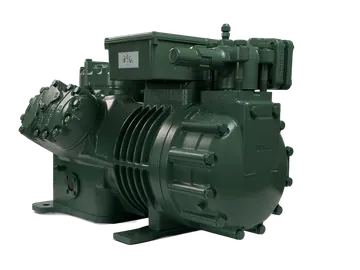

These photographs show the shared exterior configuration for the 6H / 6G / 6F appearance group. Confirm nameplate and ordered configuration with our export team.
6G-40.2 specifications
Values support preliminary model matching. Final electrical and application details should be confirmed before ordering.
- Nominal power
- 40 HP / 30 kW
- Displacement at 50Hz
- 126.8 m³/h
- Cylinders × bore × stroke
- 6 × Ø75 × 55 mm
- Power supply
- 440–480V YY / 3Ph / 60Hz
- Max operating current
- 78 A
- Starting / locked rotor current
- 180 / 323 A
- Oil charge
- 4.75 L
- Oil supply
- Oil pump
- Dimensions L×W×H
- 795 × 452 × 445 mm
- Mounting B×A
- 381 × 305 mm
- Crankcase heater
- 220V / 140 W
- Net weight
- 238 kg
Please provide voltage, frequency, refrigerant, operating conditions, quantity and destination so we can confirm the correct configuration.
BITZER and its model references are third-party trademarks used solely to identify compatible applications. Dongqi Refrigeration is an independent aftermarket supplier and is not an official or authorized BITZER partner.
